CYT41Q-(A) Mining Drilling and Blasting Rig 1. Applicable Scenarios
CYTC41Q (A) hydraulic mining drill (model and name required by safety standards) is a fully mechanized drilling and blasting machine with functions such as drilling and installing explosives. The rock drill uses a pneumatic rock drill, which is more cost-effective. It is suitable for secondary crushing operations in underground mines such as metal mines, non-metal mines, water conservancy and hydropower, etc. that do not require explosion-proof, such as eyebrow lines, tunnels, and stopes. It can achieve bench crest dredging and crushing of large pieces of ore.
2. Technical features
. Multi-function: drilling, placing explosives, etc.;
. Flexibility: modular design, compact and reasonable layout, articulated steering, flexible walking and turning;
. Powerful power: full diesel power, torque converter four-wheel drive engineering chassis;
. Safety: hydraulic wet dual brake system, driving oil brake, parking closed spring brake;
. Equipped with prefabricated PVC pipe explosive roll magazine, a single entry can complete the installation of 1 roll;
. Internal blasting effect far exceeds the currently commonly used surface blasting effect;
. Accuracy: drill arm support mechanism, rock drill and roll installation push rod rotation switch;
. Remote control system (optional), can realize drilling, charging, switching workstations and other operations through remote control, safe and reliable;
3.Parameters
| Model | CYTC41Q(A) |
| Item | Unit | Parameter |
| Overall performance | Size | L×W×H | mm | 7750±100×1800±50×2530±50 |
| Min. Turning radius | mm | Inner:1600；Outer:4500 |
| Min. Ground clearance | mm | ≥225 |
| Machine weight | kg | 5400±200 |
| Rated drilling diameter | mm | 41 |
| Drilling depth | mm | 1000 |
| Air leg rock drill | Working air pressure | MPa | 0.5--0.63 |
| Impact energy | J | ≥44 |
| Air consumption | m³/min | 3.1--5 |
| Driving system | Rear axle swing angle | (°) | ±6.5~±8.5 |
| Driving speed | Gear Ⅰ～GearⅣ | km/h | 9.5±0.9～21±2.1 |
| Max. Climbability | (°) | 14 |
| Drill boom | Telescopic length | mm | 513 |
| Radial swing angle | (°) | ±90 |
| Longitudinal swing angle | (°) | ﹢70 |
| Diesel engine | Rated power | kW | 81 |
| Rated speed | r/min | 2400 |
| Hydraulic system | Rated working pressure | MPa | 17 |
| Maximum working pressure | MPa | 18 |
| Water supply device | Water tank capacity | L | 250 |
| Explosive roll push mechanism | Pushing mechanism rotation angle | (°) | 35 |
| Storage capacity | PCS | 1 |
| Diameter of medicine roll | mm | 32 |
| Maximum pushing stroke | mm | 1000 |

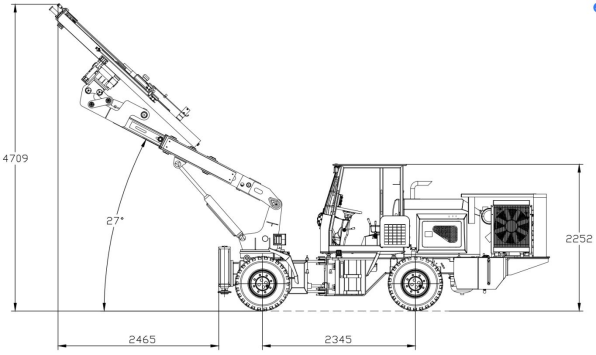

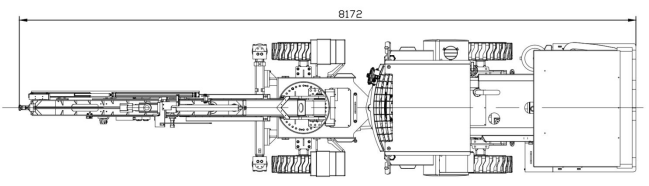

4. Size and turning radius
5. Working scope
